Description
Technical Parameters
| Device model | DPX-C1500 | DPX-C2000 | DPX-C3000 | |
| Laser type | CW fiber laser source（Wavelength: 1080±3nm） | |||
| Laser power | 1500W | 2000W | 3000W | |
| Cooling method | Water cooling | |||
| Power adjustment range | 10%～100% | |||
| Cleaning mode | Continuous cleaning | |||
| Adjustable clean width | 300 mm@F800 150 mm@F400 | |||
| Welding gun cable length | Around 9m | Around 19m | ||
| Cleaning gun weight | 0.7kg | |||
| Product size（L*W*H） | 980*550*720mm | 980*650*920mm | ||
| Total weight | 98kg | 103kg | 170kg | |
| Machine power consumption | <6.7kw | <8.4kw | <13kw | |
| Operating voltage | Single-phase three-wire 220VAC | Three-phase five-wire 380VAC | ||
| Working environment | Temperature：0～40℃、Humidity<70% | |||
| Safety light emission system | 1. Gas detection: The alarm red light will indicate when the gas cylinder is not opened or the gas flow is low. 2. Cleaning gun firing button and laser shutter, double insurance to emit light. | |||
Advantages
- The cleaning range can be adjusted to 300mm to meet the cleaning needs of large-sized products.
- 20 meters long distance optical fiber transmission, movable operation, cleaning large fixed equipment, complex shape products, hidden parts.

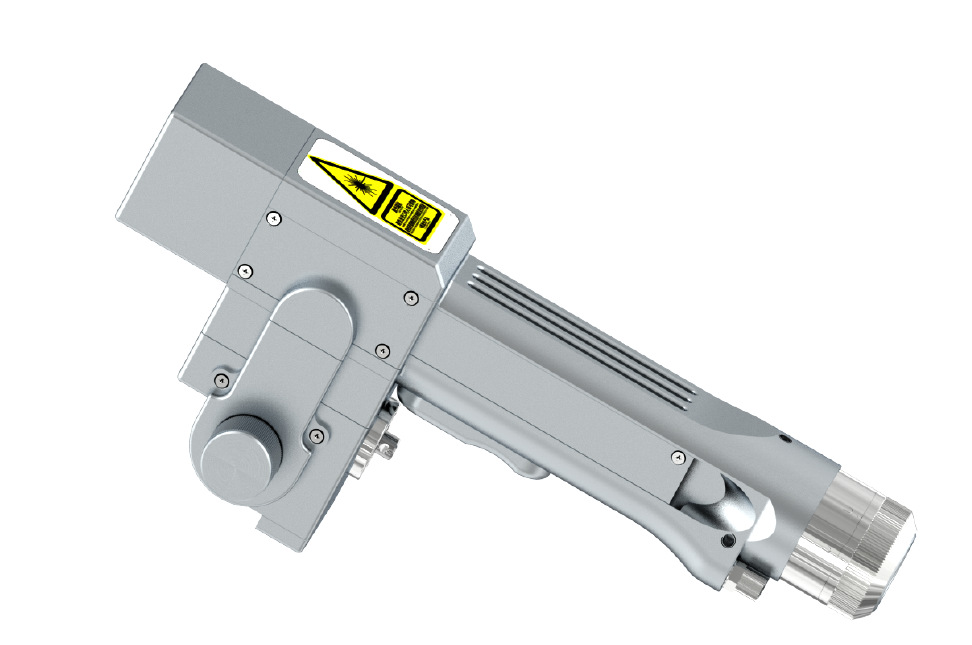

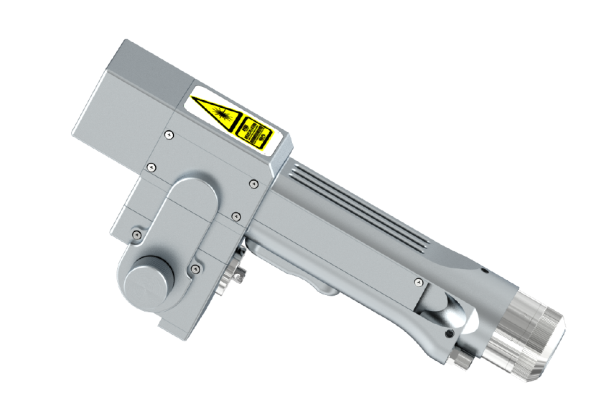

- The handheld cleaning head is light and has a comfortable grip, suitable for long-term handheld cleaning operations.
The cleaning head is designed with an air curtain structure to increase the gas protection flow rate of the light outlet and prevent lens contamination. - The whole machine and cleaning head are water-cooled to ensure long-term stable work.
- Three sets of cleaning process parameters can be preset, and can be applied to the cleaning of different products by calling them directly.
- It uses continuous laser light source, which has strong energy to clean the surface rust layer of products such as pipelines, ships, and tracks.
- The cleaning materials are wide and can remove resin, oil, stains, dirt, rust, coating, coating, coating, paint, etc.

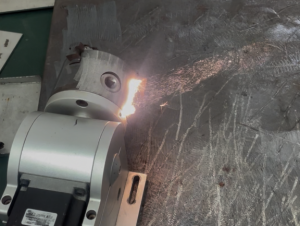

Application effect
