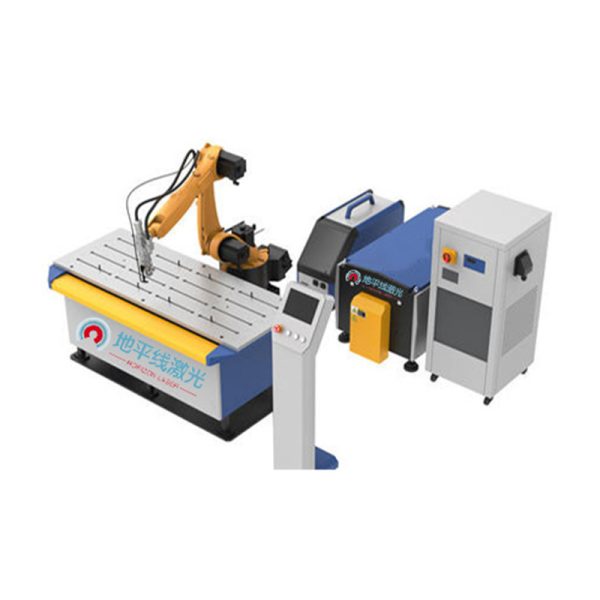

3D Robot Laser Welding Machine

3D robot laser welding machine through the laser control module and the manipulator motion mechanism, match each other and work together. It has a high degree of flexibility and can meet the welding needs of any complex work piece. It is widely used in the automotive industry and electrical cabinet industry.

Features

1. The manipulator does not need a laser signal module, and the direct IO signal communicates with the welding machine handshake;
2. There are 64 sets of welding process waveforms, which are stored and recalled for welding requirements of different parts of the product;
3. The welding machine integrates functions such as laser control, swing welding head, wire feeding, and air pressure detection;
4. Realize offline multi-document welding processing to avoid incorrect welding caused by computer card machine;
5. Multi-signal closed-loop transmission of laser, laser control unit and manipulator, safe and reliable.

Description

Description

Technical Parameters

Laser	Continuous Fiber Laser
Laser power	1000-6000W
manipulator	6 axis (multi-brand optional)
Welding head	Conventional welding head, galvanometer type swing welding head (weld seam 0.2 ~ 5 mm )
Process waveform	64 groups ( IO port call)
Waveform function	Laser power, pulse width, start and end arc control, swing length, swing type, wire feed
Load-bearing load	8-20kg (specification optional)
Processing radius	500-2000mm (Specifications are optional)
Targeting	Red light indication + CCD vision

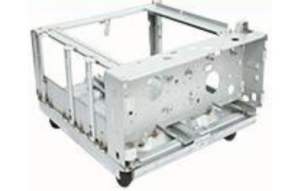

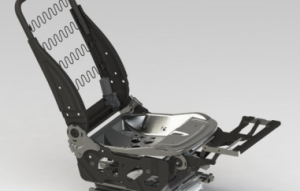

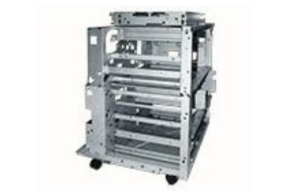

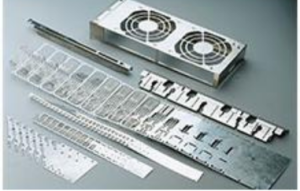

Application Area
