Description
Technical Parameters
| Item | Characteristics | Typical Value | unit |
| Electrical Characteristics | Supply Voltage | 220V (customizable 110V) | V |
| Maximum Power Consumption | 4150 | W | |
| General Characteristics | Laser Power | 500 | W |
| Laser Wavelength | 1064 | nm | |
| Maximum Single Pulse Energy | 15&50 | mJ | |
| Fiber Cable Length | 10m (customizable 15m) | m | |
| Cooling Method | Water Cooling | ||
| Adjustable Cleaning Width | 120mm@F300、100mm@F254 | mm | |
| Cleaning Head Weight | ＜1.3 | kg | |
| Product Size | L*W*H：980*550*720 | mm | |
| Total Weight | 107 | kg |
Advantages
- The solution combines a pulsed laser with a dual oscillating mirror cleaning head. Compared to continuous laser cleaning, it features lower heat input, higher peak power, and stronger penetration, making it more suitable for cleaning precision products with delicate and refined results.
- The dedicated cleaning laser ensures uniform beam energy distribution, delivering a fine cleaning effect without damaging the substrate and leaving no underlying patterns.

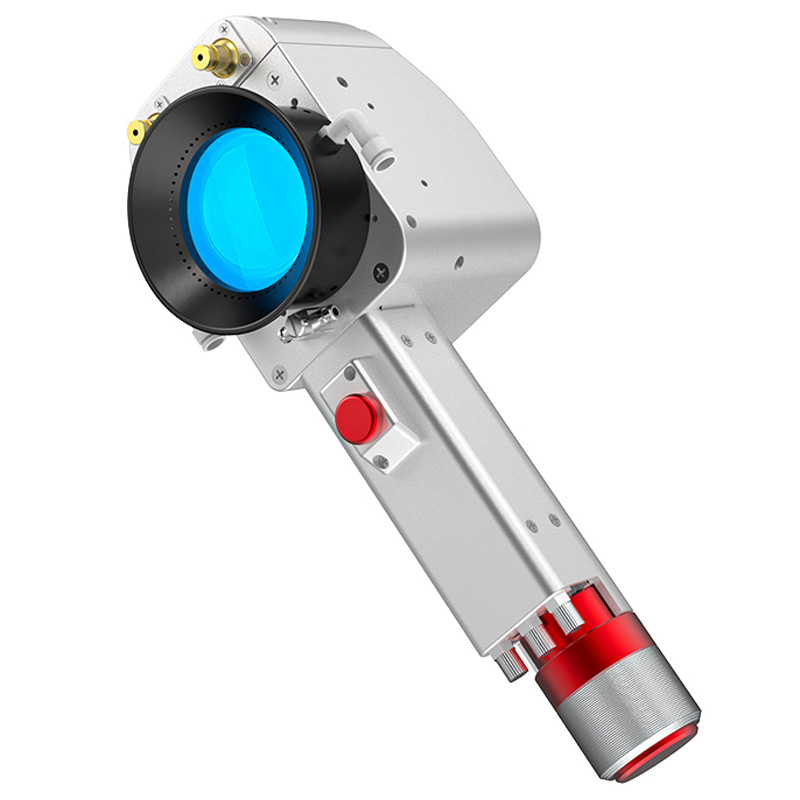

- The cleaning head utilizes an ultra-high-speed dual oscillating mirror, enabling more efficient and thorough cleaning.
- The cleaning width can reach up to 120mm @ F300 (100mm @ F254), meeting the requirements for efficient cleaning of large-sized products.
- It comes with 9 sets of cleaning process parameters and 8 types of cleaning trajectory patterns, which can be directly applied to clean different products.
- The cleaning head can be switched between handheld and fixed modes, catering to a wider range of cleaning scenarios.
- With long-distance fiber transmission, it supports mobile operation and can clean large fixed equipment, products with complex shapes, and hidden areas.
- It is capable of cleaning a wide range of materials, including rust, coatings, rubber, paint, resin, oil stains, and more.
Application effect
