Description
Features
- It can be used to process a variety of metals, non-metallic (effect depending on lasertype) material, especially for high hardness, high melting point, brittle materials, more obvious advantages.
- It is a non contact processing, does not damage the product, no tool wear, with high marking quality.
- Laser beam is very small, and the material consumption is very small, and the processing thermal influence area is small.
- The processing efficiency is high, the use of computer control, easy to realize automation.
Advantages
- All kinds of metal materials and some non-metallic materials marking
- Air cooling system, no maintenance
- Free to change the marking parameters and graphics
- Stable working performance, life time can reach 100,000 hours
- Marks are anti-falsification, more fine and unique

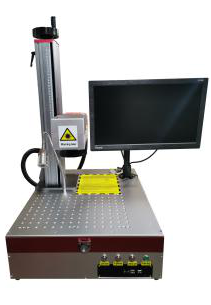

Marking machine Technical parameters
| power: | 20w/30w/50w |
| laser wavelength | 1064nm |
| makring area | 100*100m |
| optional marking area | 110*110mm/1 50*1 50mm/200*200mm |
| marking speed | 8000mm/second |
| minimum line width | 0.012mm |
| minimum character | 1.5mm |
| repeated precision | 0.003mm |
| life-span of fiber laser module | 100.000 Hours. |
| beam quality | m2<1.5 |
| focus spot diameter | <0.001 mm |
| output power of laser | 10%-100%continuously to be adjusted |
| system operation environmen | windows xp/wind7/wind8 |

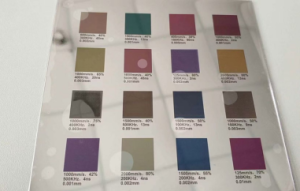

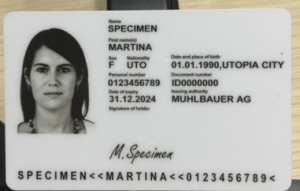

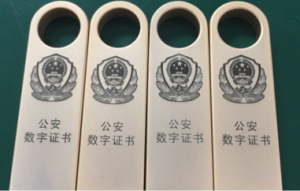

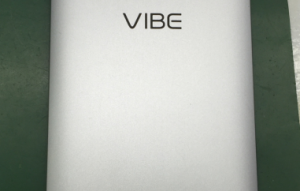

Application effect
