Description
Features
Air-cooled, lighter and more portable.

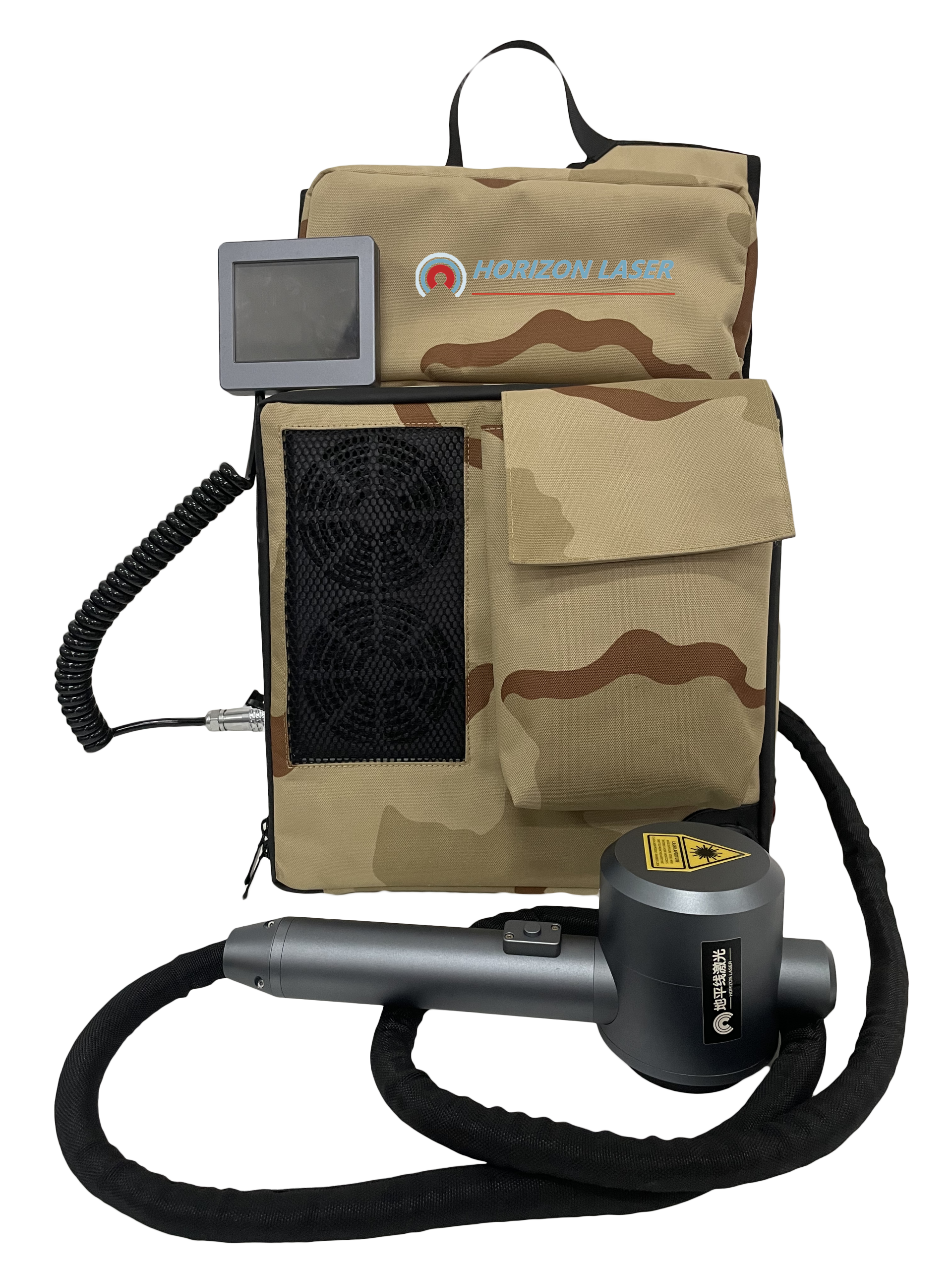

Cylinder structure and pulleys at the bottom make the equipment more convenient to move (backpack type is optional).
The cleaning head is lighter and suitable for long-term hand-held operation.
Advantages
Portable design: compact, wearable, ergonomic, single-handed;
Efficient cleaning: high laser cleaning efficiency, saving time;
Non-contact type: laser cleaning without grinding and non-contact;
Non-pollution: easy to solve the environmental pollution caused by chemical cleaning without using any
chemicals and cleaning liquids;
Strong scalability: interchangeable lens, changeable focus distance, wide cleaning format.
Technical Parameters
| Model | DPX-QP50 | DPX-QP30 |
| Laser source | Pulse 50W | Pulse 30W |
| Fiber length | 5m (customizable) | 5m (customizable) |
| Pulse energy | 1.5mJ | 1.5mJ |
| Cooling method | air cooling | air cooling |
| Dimensions | 462*260*855mm | 462*260*855mm |
| Weight | 32kg | 30kg |
| Power consumption | ＜400w | ＜300w |
| Supply voltage | AC 220V | |
| Application industry | Ancient cultural relic restoration, power grid base station, large equipment parts, welding production line | |
Parameters
| Base Material | Surface | Effective DOF (mm) | Normal Speed (mm2/s) | High Speed (mm2/s) | Effect |
| Cast iron | Severe rust(0.08mm thick) | 8 | 2000 | 3000 | Clean surface and no harm to base material |
| Carbon steel | Moderate rust (0.05mm thick) | 8 | 1800 | 2400 | Clean surface and no harm to base material |
| Stainless steel | Greasy dirt, slight rust | 8 | 2000 | 3000 | Clean surface and no harm to base material |
| Mouldsteel gear | Moderate greasy, iron residue | 8 | 1500 | 2300 | Clean surface and no harm to base material |
| Aluminum | Oxide, Dirty surface | 8 | 1500 | 2000 | Clean surface and no harm to base material |
| General Characteristic | Test Conditions | Min. | Typical | Max. | Unit |
| Operating Voltage | 220 | 210 | 220 | 230 | * |
| Maximum Current Consumption | Pout=Pnom | 4 | 5 | 6 | A |
| Operating Ambient Temperature | 0 | +40 | °C | ||
| Storage Temperature | -10 | +60 | °C | ||
| Cooling Method | AirCooling | ||||
| Warm upTime | -can be operated | 0 | min | ||
| -work steady | 10 | min | |||
| Relative Humidity | 10 | 96 | % | ||
| Dimensions | 390*150*485 (W*D*H) | mm | |||
| Weight | 17 | kg | |||
| Laser cleaning head | 2.5 | kg | |||

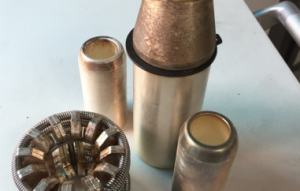

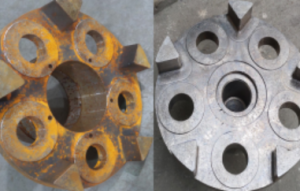

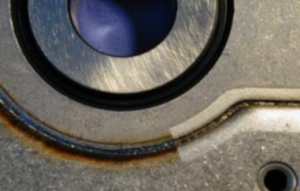

Application effect
