Single Platform Laser Cutting Machine 1000-30000W

Single Platform Laser Cutting Machine 1000-30000W

Category

Single platform laser cutting machine The single-platform laser cutting machine has a small overall footprint and high cost performance. As an economical and practical laser cutting machine, it can be used by the majority of medium and thin plate customers who pursue quality and have limited budgets.

Features

  • A single cutting platform, the overall equipment is compact.
  • The operation panel and the electric control are integrated into one design, independent of the cutting table, and the operation is more convenient.
  • A variety of cutting formats are available to meet the blanking requirements of different sizes of plates.
Click here

Description

High Power (12000W-30000W)

Technical Parameters

Laser power12000-30000W
ModelDPX-D6025DPX-D8025DPX-D10025DPX-D12025
Cutting range6000 × 2500mm8000 × 2500mm10000 × 2500mm12000 × 2500mm
Cutting focus methodAuto focus
Machine running accuracyAcceleration: 1.8G
Maximum speed: 150m/min
Axial positioning accuracy of worktable: ± 0.05mm/m
Repeated positioning accuracy of worktable: ± 0.03mm/m

Cutting performance

material12000W cutting performance15000W cutting performance20000W cutting performance
carbon steelstable cutting≤ 35mmstable cutting≤ 40mmstable cutting≤ 45mm
Limit cut50mmLimit cut60mmLimit cut70mm
Stainless steelstable cutting≤ 30mmstable cutting≤ 35mmstable cutting≤ 40mm
Limit cut50mmLimit cut70mmLimit cut80mm

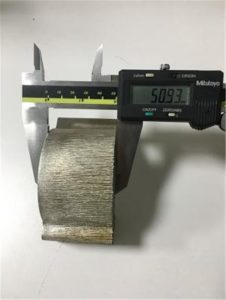

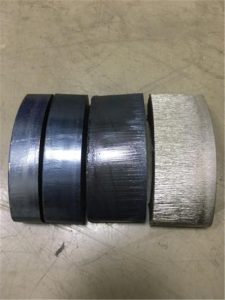

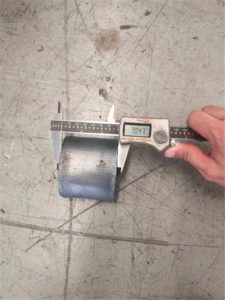

Application effect

Medium power ( 3000-6000W )

Technical Parameters

Laser power3000-6000W
ModelDPX-D3015DPX-D4020DPX-D6025DPX-D8025
Cutting range3000 × 1500mm4000 × 2000mm6000 × 2500mm8000 × 2500mm
Cutting and focusing methodAuto focus
Machine running accuracyAcceleration: 1.2G
Maximum speed: 100m/min
Axial positioning accuracy of worktable: ± 0.05mm/m
Repeated positioning accuracy of worktable: ± 0.03mm/m

Cutting performance

Material3000W cutting performance4000W cutting performance6000W cutting performance
Carbon steelstable cutting≤ 20mmstable cutting≤ 22mmstable cutting≤ 25mm
Limit cut25mmLimit cut25mmLimit cut30mm
Stainless steelstable cutting≤ 9mmstable cutting≤ 10mmstable cutting≤ 14mm
Limit cut12mmLimit cut14mmLimit cut20mm

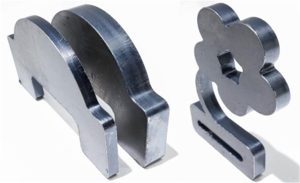

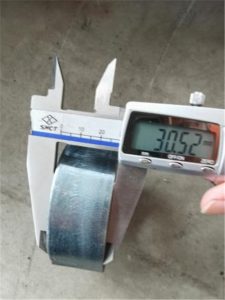

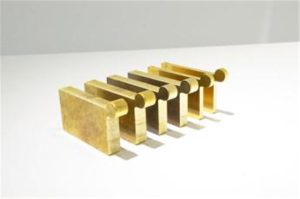

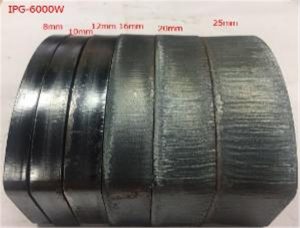

Application effect

Low power (1000W-2000W)

Technical Parameters

Laser power1000-2000W
ModelDPX-D3015DPX-D4020DPX-D6025
Cutting range3000 × 1500mm4000 × 2000mm6000 × 2500mm
Cutting and focusing methodManual / automatic focusing
Machine running accuracyAcceleration: 1.0G
Maximum speed: 80m/min
Axial positioning accuracy of worktable: ± 0.05mm/m
Repeated positioning accuracy of worktable: ± 0.03mm/m

Cutting performance

Material1000W cutting performance1500W cutting performance2000W cutting performance
Carbon steelstable cutting≤ 8mmstable cutting≤ 12mmstable cutting≤ 16mm
Limit cut12mmLimit cut16mmLimit cut20mm
Stainless steelstable cutting≤ 4mmstable cutting≤ 6mmstable cutting≤ 7mm
Limit cut6mmLimit cut8mmLimit cut10mm

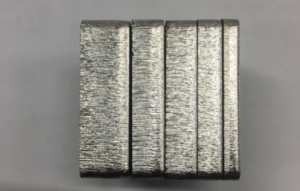

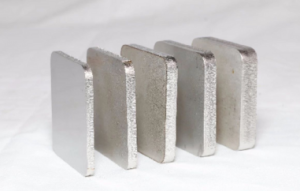

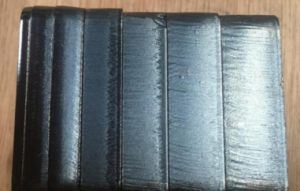

Application effect
