Mold laser cleaning workstation

Short Description:

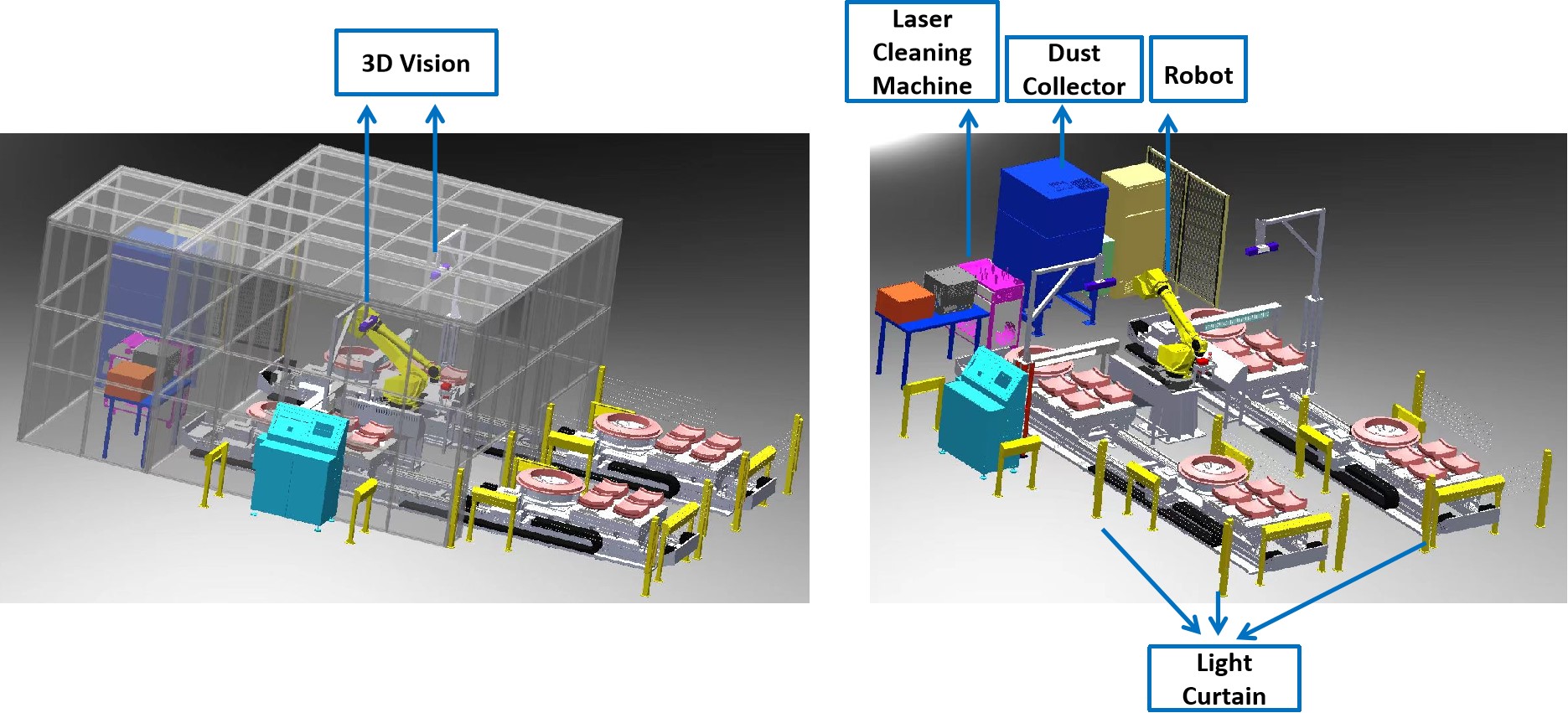

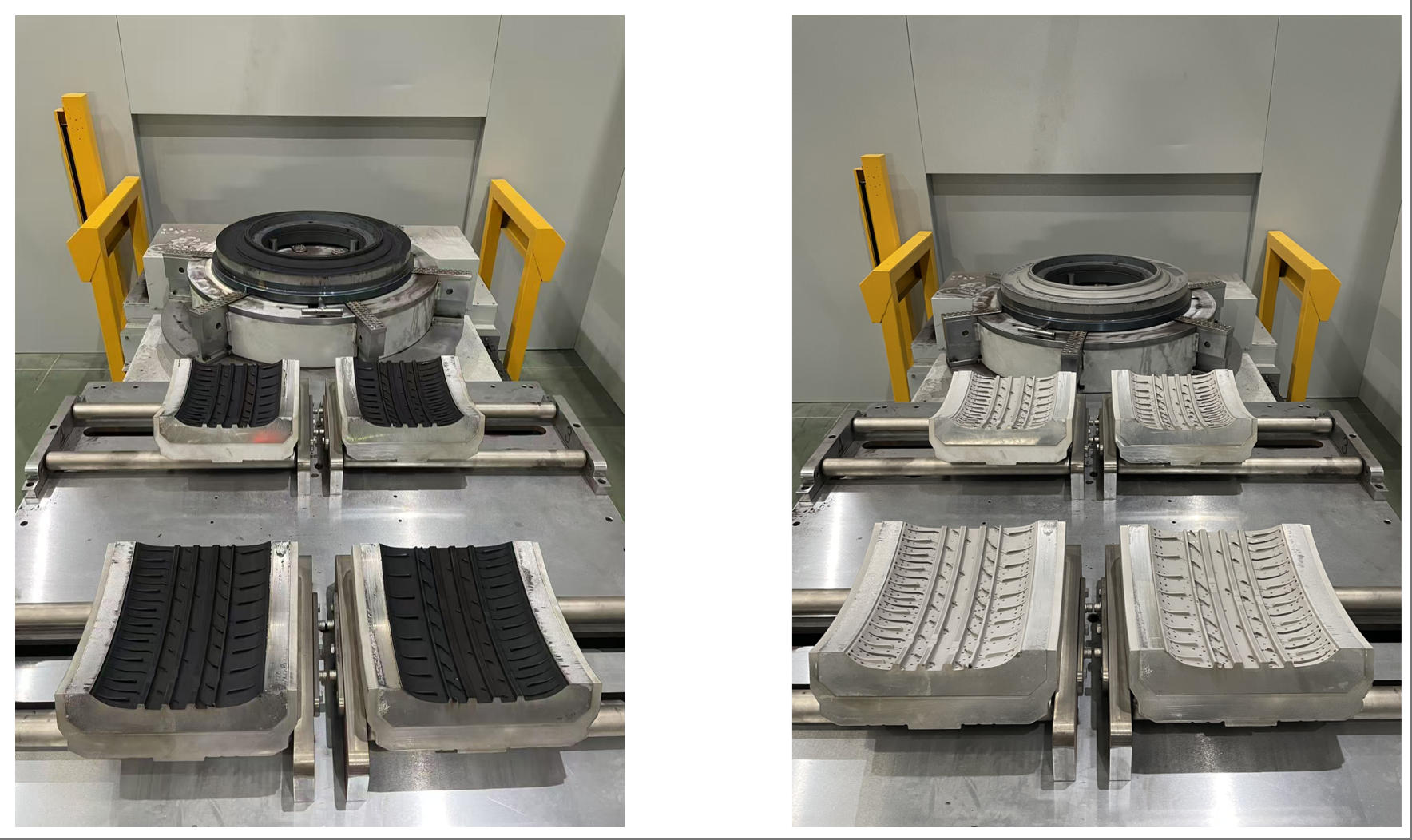

The laser cleaning workstation is a set of intelligent and environmentally friendly automated laser cleaning equipment, used for offline fully automatic laser cleaning of semi-steel tire mold blocks and side panels. This product uses machine vision to identify and locate dispersed molds. Intelligently identify the positions of the blocks and side panels, and clean the roots and rubber-spill areas of the blocks without disassembling the blocks. The system comes with a vacuum cleaner to filter and collect smoke, irritating or harmful gases generated by cleaning tire molds, which can reduce the spread of irritating or harmful gases in the air and cause environmental pollution and reduce the impact on people's health. The intelligent laser cleaning workstation of tire molds consists of a laser cleaning system, a water cooling system, a robot system, a servo motion platform, a 3D visual positioning system, an operation control system, a vacuum cleaner system, a laser safety room and a monitoring system.

Send email to us

Product Detail

Product Tags

Technical parameters

Category	Item	Parameter
Electrical	Power Supply	380V/3-phase/50Hz
Electrical	Rated Power Consumption	30kW
Optical	Laser Wavelength	1080nm
	Laser Power	1000W (optional)
	Cleaning Width	240mm (optional)
3D Vision	Field of View	460-2700mm (optional)
Robot	Reach	2600mm

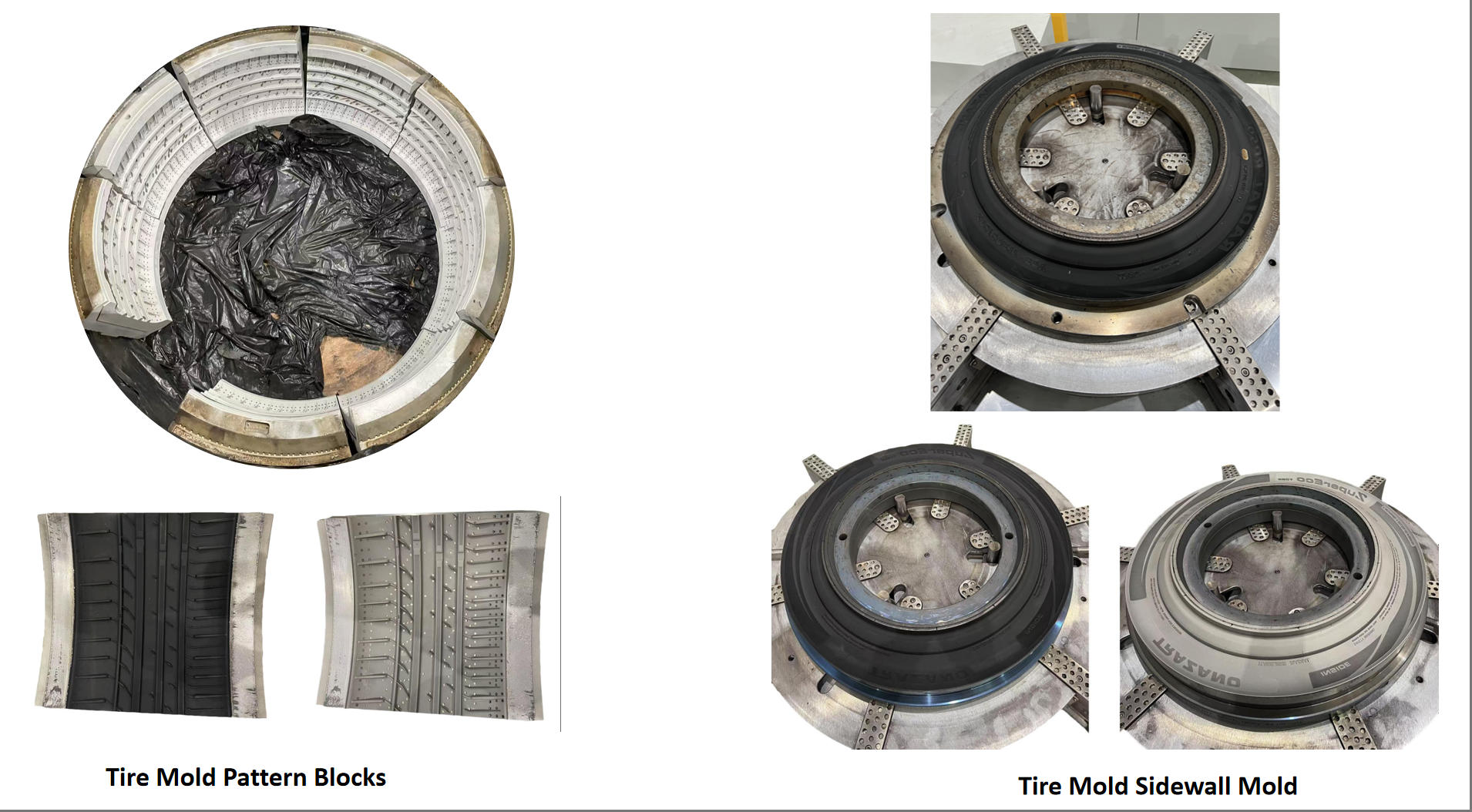

Mold Compatibility	Pattern Blocks	Compatible Size: 200-450mm
Mold Compatibility	Sidewall Mold	Compatible Diameter: 500-1300mm
Dimensions	LWH	10.75.53.5m
Safety Protection	Light curtains, AI person detection cameras, safety fences, interlocked doors

Product features

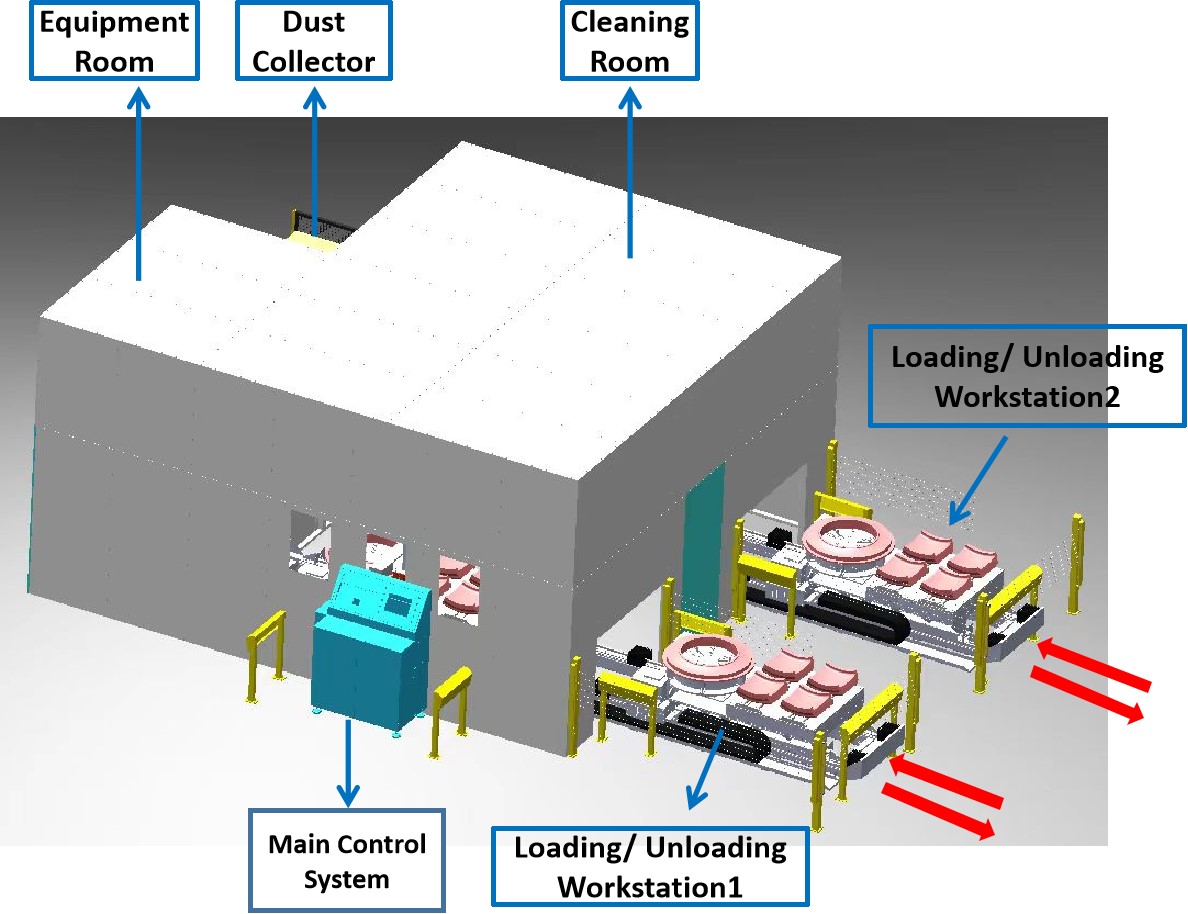

Dual workstations (left and right) with same-side loading/unloading.
Station 1 performs cleaning inside the chamber while Station 2 simultaneously handles loading/unloading, maximizing operational efficiency.
One-touch start, automatic feeding, and 3D vision for capturing mold coordinates, guiding the robot-equipped laser cleaning head.
Dust extraction system collects contaminants in the enclosed chamber, ensuring green cleaning with zero pollution.

Product advantage

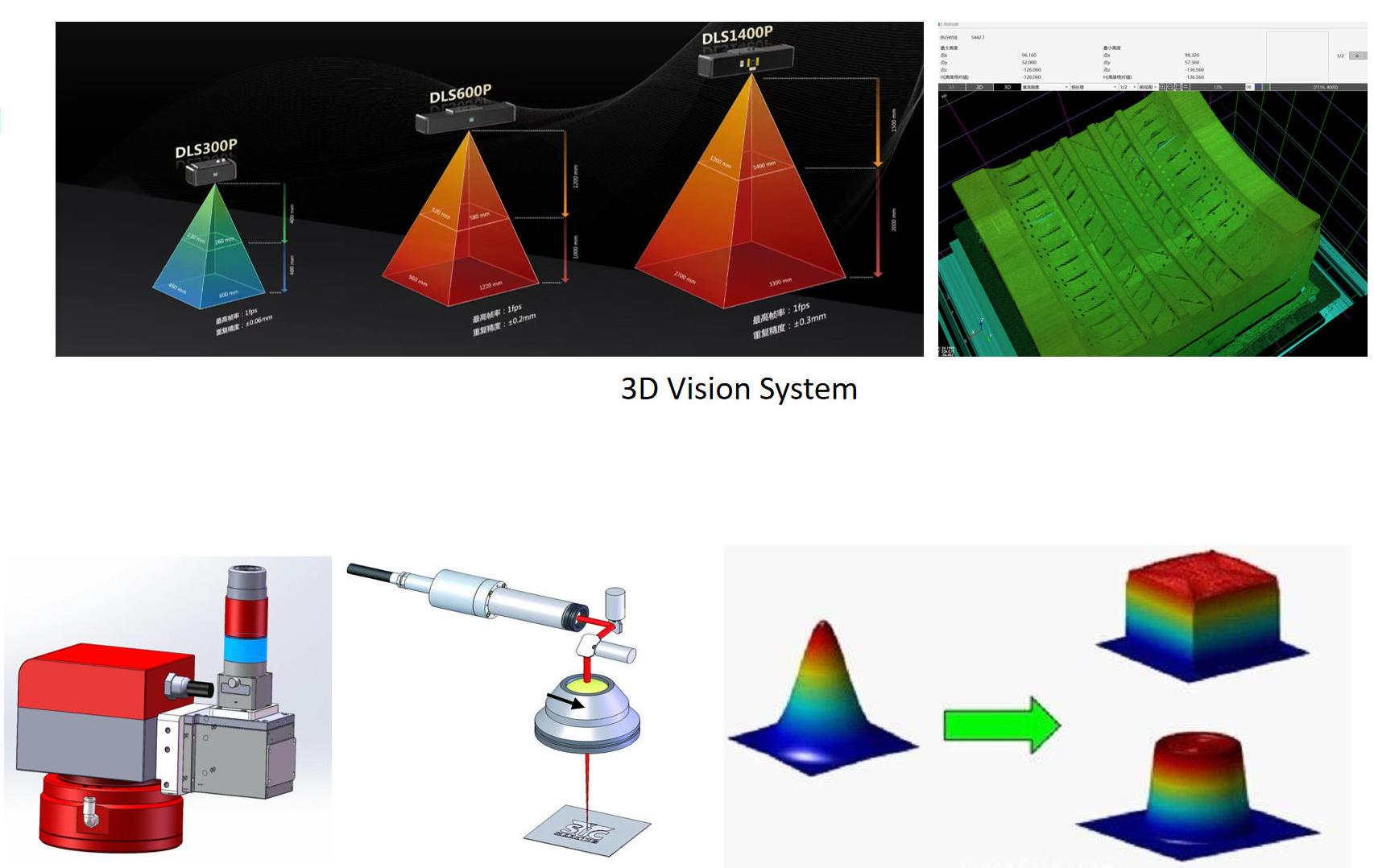

3D Vision System:Captures 3D images of the mold and generates customized cleaning paths, eliminating the need for tire-specific recipes.
Laser Cleaning Head:Proprietary galvo-scanner flying cleaning algorithm, increasing cleaning speed by 30-50%.
Laser Specifications:Flat-top laser beam profile – cleans without substrate damage.High single-pulse energy – delivers superior cleaning performance.
